Universal Blue Cylinder Aluminum Baffled Oil Catch Tank/Can Reservoir+Filter

An oil catch tank is used in turbo applications, or high-performance racing applications where excessive blow-by (leakage past the piston rings) of air and fuel vapor occurs. This creates a positive pressure in the crankcase. During engine operation, blow-by gases, as well as oil mist from the rotating components of the engine, pass through the PCV valve and are routed back into the intake for the engine to burn off. However, some of the oil mist and other by-products settle along the engine intake and over time form a gunk. The oil catch tank collects such oil mist and condenses the fuel vapors while allowing cleaner gases to be passed back into the intake.

• Tank Size: 5" Height x 3.25" Diameter. Capacity: TBA
• Inlet Outlet Size (IN): Fit 3/8" or 9/16" ID Hoses

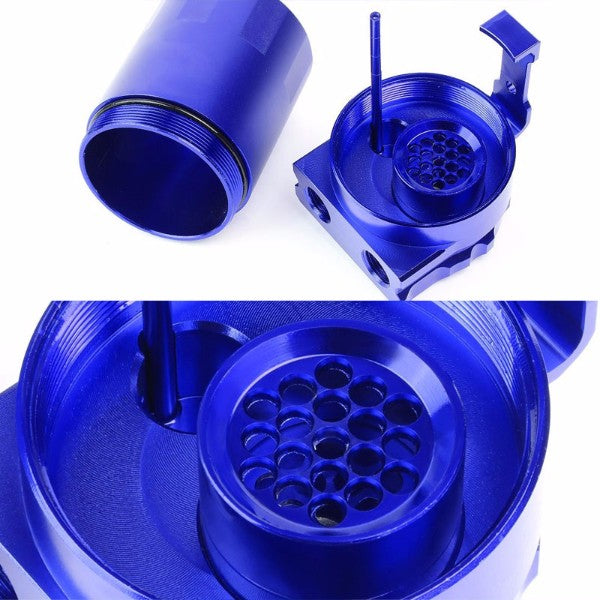

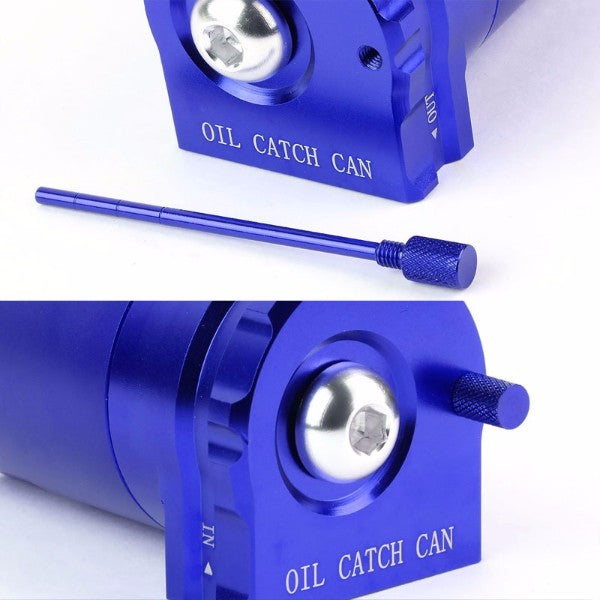

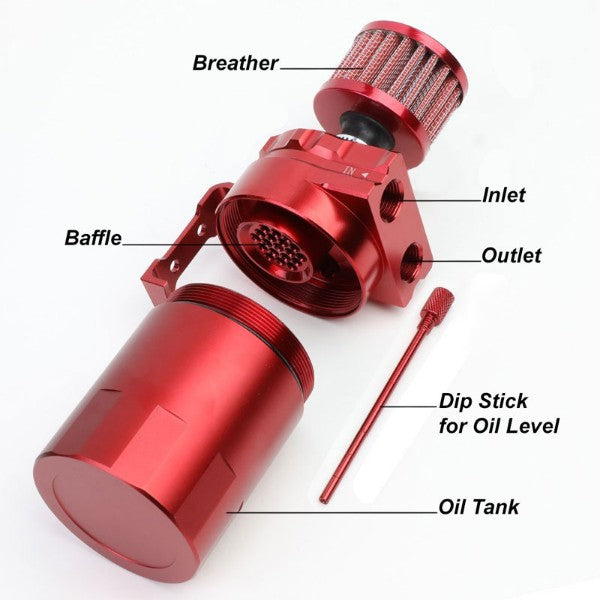

• Built In Dipstick To Check Fluid Level; Air Filter to use as Vented System, Removable Baffle that Can Store Additional Filter Media
• Removable Bottom to Drain, Catch Oil and Sludge to Save the Life of the Engine
• Ensure Better Mileage, Better Performance and Preserve Engine Life, Included Mounting Hardware & Hose Adapters
• Material: T-6061 Light-Weight Aluminum
• Color: Blue

Application:

• This is an universal fit product, This Product can be use in various application/Car model

Product Content:

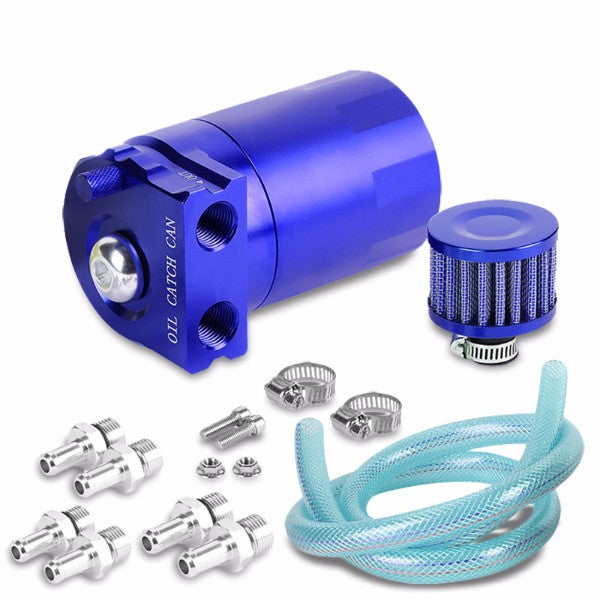

• 1 x Oil Catch Tank
  1 x Air Filter

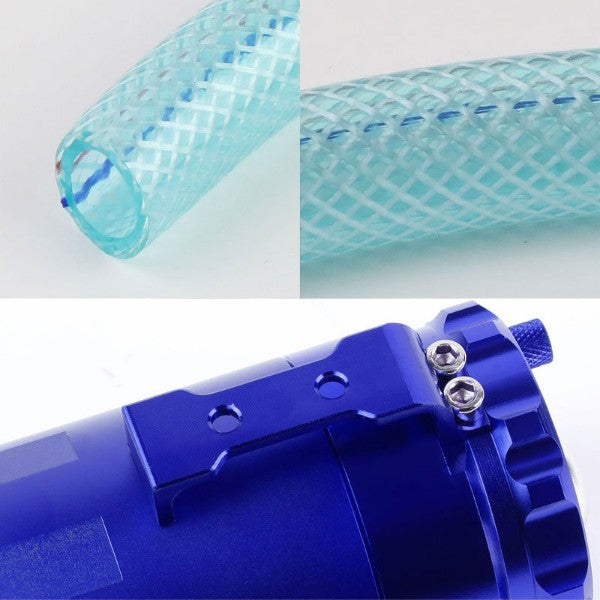

  Hardware as Shown in the Picture Above

Cross Reference Number:

• BFC-OICATK-TYZ8011-BL

The product does not come with manual/instruction, Professional Install Recommended
