SKU# BFC-WSGT-T11-4B-46-SL

Silver Universal 46mm 14PSI 4-Bolt On Turbocharger External Wastegate Spring T11

Wastegates provide a means to control the boost pressure of the turbo charged engine. Wastegates work to bypass exhaust flow from the turbine wheel. Bypassing the exhaust flow reduces the power driving the turbine wheel to match the power required for a given boost level. Similar to the BOV, the Wastegates uses boost pressure and spring force to regulate the flow bypassing the turbine. Wastegates could be bolted to exhaust manifold or header. The advantage of external Wastegates is that the bypassed flow can be reintroduced into the exhaust stream further downstream of the turbine. This tends to improve the turbine's performance.

  • Material: Body: Cast Iron, Top: Aluminum, Valve: Stainless Steel
  • Color: Silver
  • Design to fit with 46mm Turbo Wastegate Flange with 4-Bolt Port Flange
  • Spring PSI: 14 PSI Spring Included
  • Wastegate Port Size: 46mm Port Size, Barbed Fittings
  • Dimensions: H: 6.00", W: 4.75" at Widest Point (Flange), Diameter: 3.50" at Body
  • Anodized Aluminum Top Finish
  • Easy to Remove Locking Collar for Fast Spring Changes
  • Weldable Flange Inlet / Outlet Flanges
  • Stainless Steel Valve

Application:

  • For Universal Application. Great for custom turbo applications or upgrades

Remark:

Note: Professional Installation is highly recommended, Modification may required

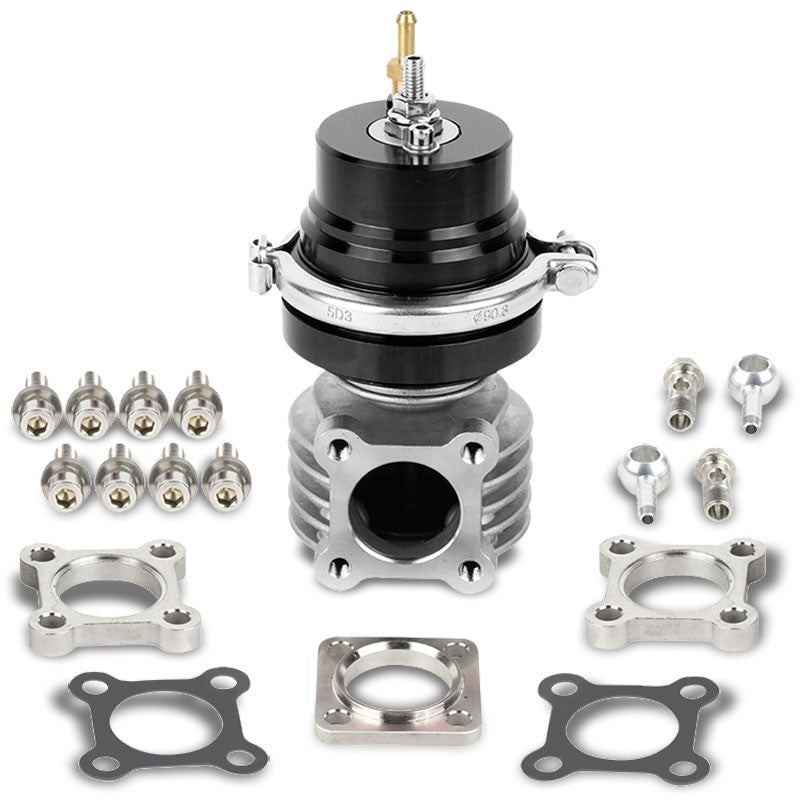

Product Content:

  • 1 x Wastegate
    Hardware (Flange/Gasket/Wrench/Fitting) if Any is Shown in the Picture Above

No Instruction, Professional Install Recommended

Cross Reference Number:

  • BFC-WSGT-T11-4B-46-SL, BFC-WSGT
