Orange 7"x2.5"DIA Aluminum Round Breather Oil Catch Tank Can+Pressure Gauge

California's Prop 65 Warning: Click Here for Detail

An oil catch tank is used in turbo applications, or high-performance racing applications where excessive blow-by (leakage past the piston rings) of air and fuel vapor occurs. This creates a positive pressure in the crankcase. During engine operation, blow-by gases, as well as oil mist from the rotating components of the engine, pass through the PCV valve and are routed back into the intake for the engine to burn off. However, some of the oil mist and other by-products settle along the engine intake and over time form a gunk. The oil catch tank collects such oil mist and condenses the fuel vapors while allowing cleaner gases to be passed back into the intake.

  • Tank Size: 7" Height x 2.5" Diameter. Capacity: 170 ML

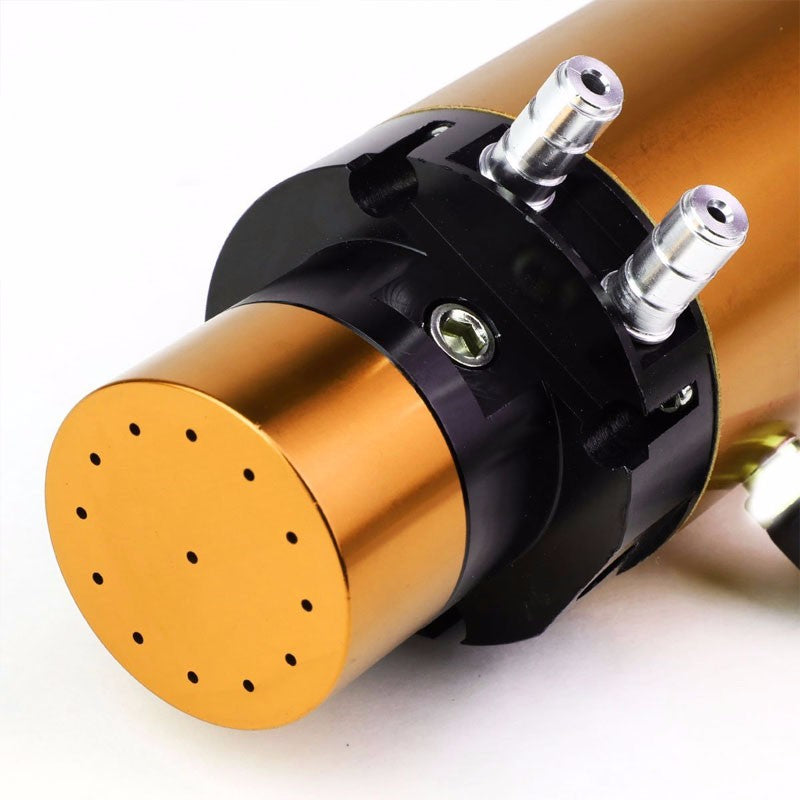

  • Inlet Outlet Size (IN): Fit 5/16" Inlet / Outlet Ports

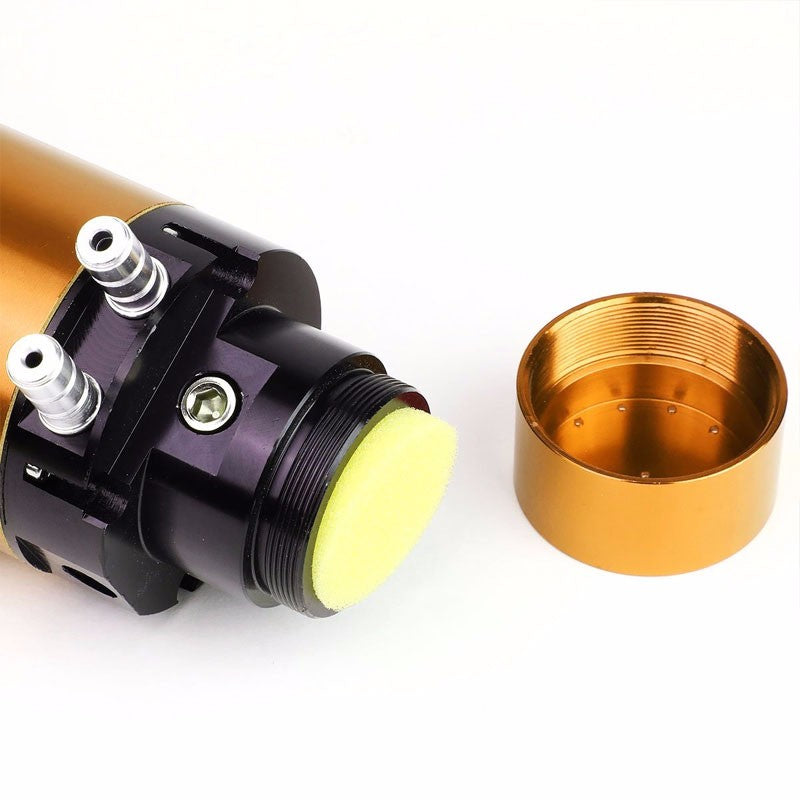

  • Anodized Aluminum Body, Adjustable Allen Bolt to Switch from Sealed & Vented System

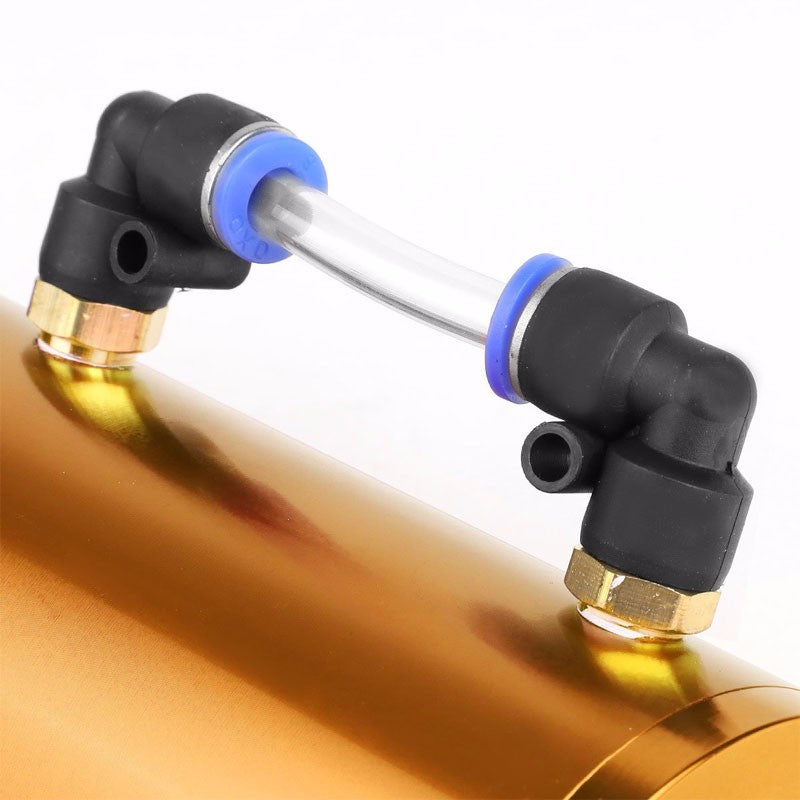

  • Vacuum / Pressure Gauge, Sight Gauge to Measure Oil Level
  • Ensure Better Mileage, Better Performance and Preserve Engine Life. Catch Oil and Sludge to Save the Life of the Engine, Included Mounting Hardware & Hose Adapters
  • Material: Light-Weight Aluminum, Color: Orange


  • This is a universal fit product, This product can be use in various application/Car model

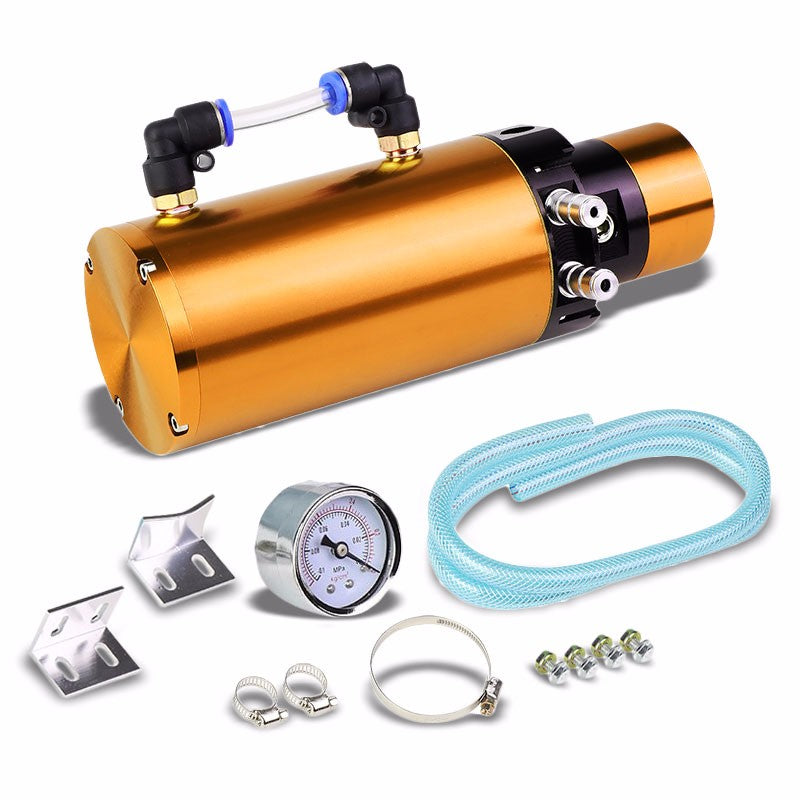

Product Content:

  • 1 x Oil Catch Tank
    1 x Gauge
    Hardware as Shown in the Picture Above

Cross Reference Number:


The product does not come with manual/instruction, Professional Install Recommended
