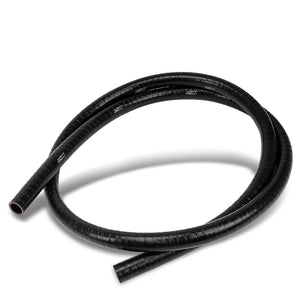

The HPS Performance 1/4" FKM lined high temperature reinforced silicone hose is a specially developed hose with a fluoroelastomer liner in our world class silicone hoses. HPS Performance FKM lined silicone hoses with quarter inch inside diameter (6mm) can provide superior resistance to the harshness of gasoline, diesel, and automotive oils. The FKM lined hose can be used where the fluid flowing through the hose would traditionally degrade silicone hoses. With the FKM liner, we can minimize permeation, evaporation, and degradation of our silicone hose.
HPS Performance FKM lined hose has excellent resistance to high temperatures, ozone, oxygen, mineral oil, synthetic hydraulic fluids, fuels, aromatics, and many organic solvents and chemicals. FKM can handle the occasional flow of ethanol based fuels.
Technical Specification - Product Type: FKM Lined Silicone Hose - Reinforced Layer: 1-ply Polyester Reinforced - Temperature Range:- 65 deg. F to + 350 deg. F (177 deg. C) - Maximum Working Pressure (use as fuel line): 55 psi - Maximum Working Pressure (non fuel line): 93 psi - Hose Inside Diameter: 1/4" (6mm) - Hose Outside Diameter: 9/16" (14mm) - Length: 7 Feet - Wall Thickness: 4mm +/- 0.2mm - Bend Radius: 1-1/8" - Color: Black - UV and ozone resistant
