Silver Intercooler+Silver SQV BOV Pipe Kit For 88-00 Honda Civic 1.5L/1.6L SOHC

When the charged air enters the end tank, it travels through the tubes of an Intercooler, in which the heat is transferred via fins, where cooler ambient air passes over the tubes. This mechanism further removes heat from air before exiting the opposite end tank and routing to the engine.

• Intercooler Size: 27.00" (L) X 6.25" (H) X 3.50" (W)
• Intercooler Core Size: 17.50" (L) X 6.25" (H) X 3.50" (W)
• Inlet/Outlet: 2.25"/ 2.25"
• Helps Reducing Engine Inlet Temperature
• Allow More Horsepower at the Same Boost Level and Even More Power at the Higher Boost Level
• Material: Aluminum
• Color: Silver

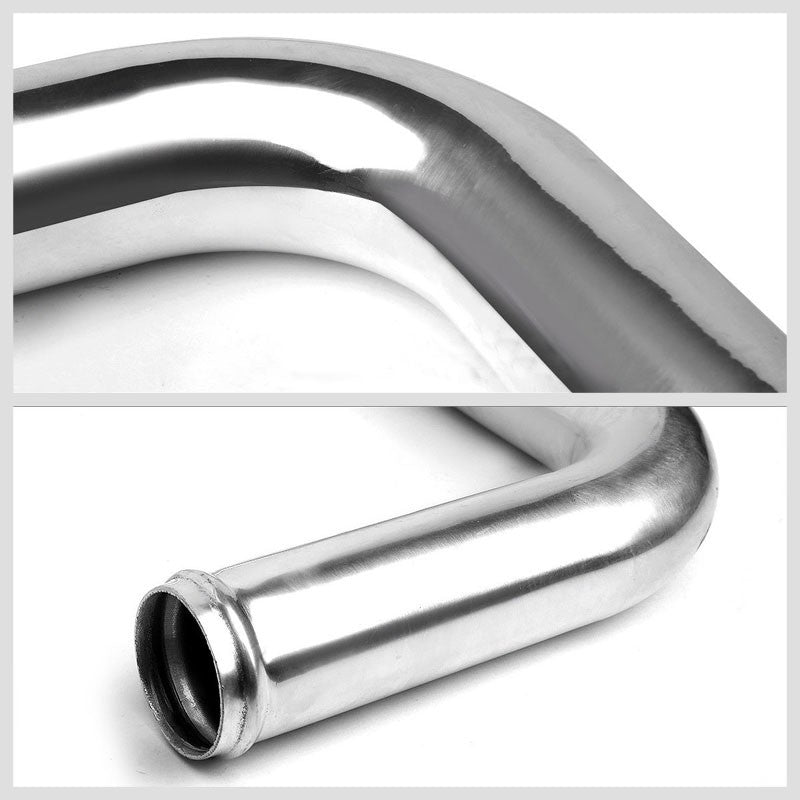

Intercooler Pipes Help Route and direct the charged air to Blow off Valves and into the engine bay. Aluminum piping works a lot better than oem rubber/ plastic pipes as they do not deform under the pressure of the turbocharger

• Piping Info: 2.00" Hot Side/2.50" Cold Side Charge Pipes

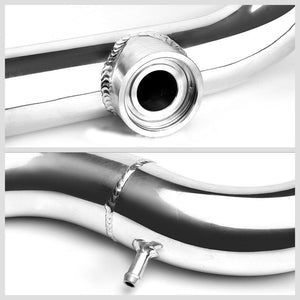

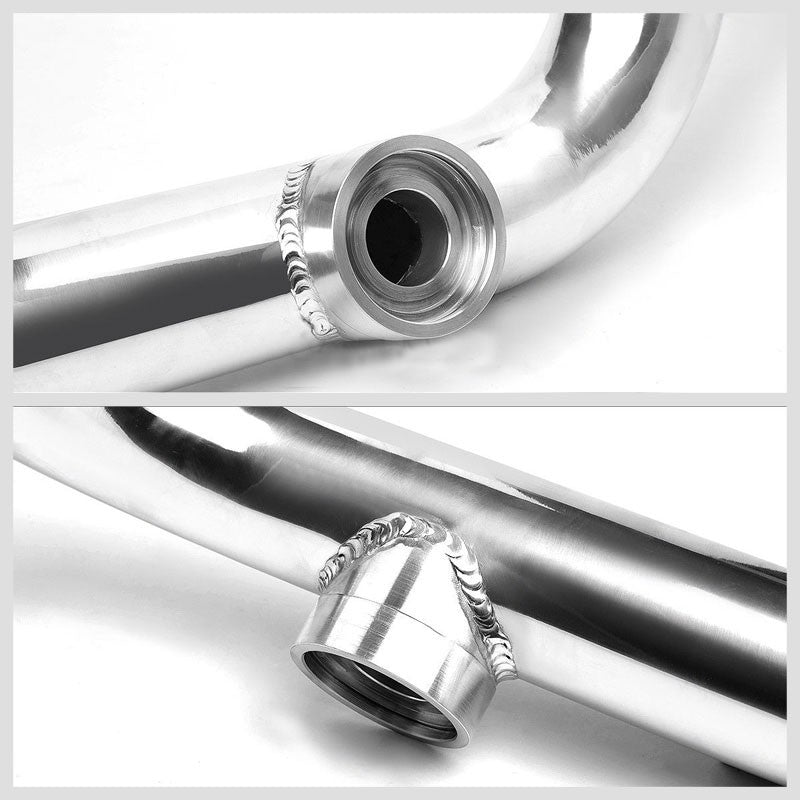

• Integrated SSQV BOV Flange, Vacuum Line Port
• 5-Piece Design for easy Installation
• Material: Aluminum
• Color: Silver

Application:

• 94-01 Acura Integra 1.8L DOHC
• 88-00 Honda Civic 1.5L/1.6L SOHC
• 93-97 Honda Civic del Sol 1.5L/1.6L SOHC
• 88-91 Honda CRX 1.5L/1.6L SOHC

Remark: Does Not fit Top Facing Throttle Bodies, Modification will be Required for Some Vehicles

Note:

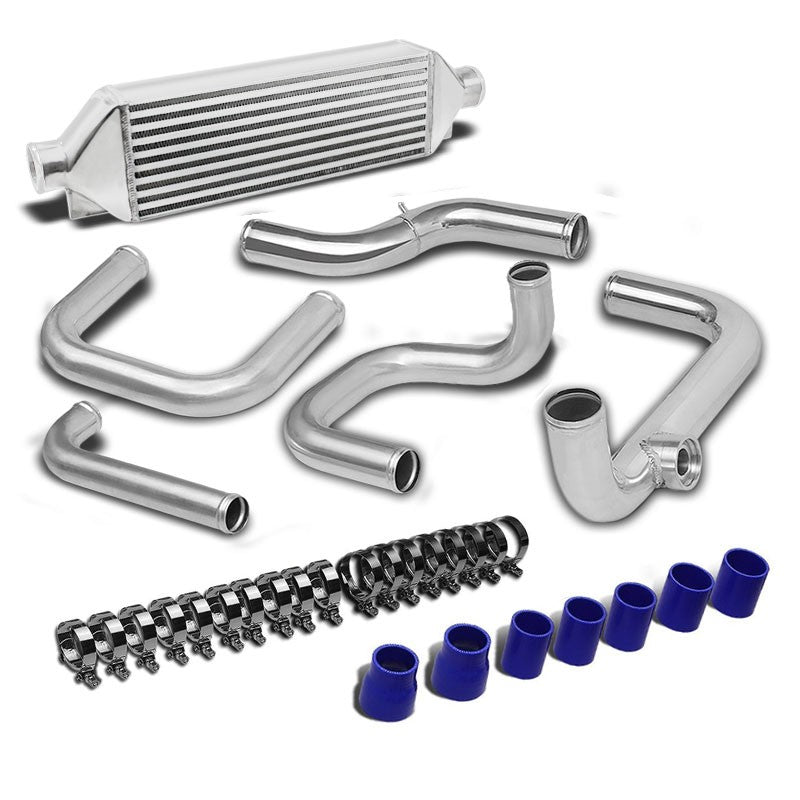

Product Content:

• 1 x Intercooler
  1 x 5-Piece Intercooler Pipe Kit as Shown Above

Cross Reference Number:

• BFC-INCLR-HONC88-SL+C88CL5PCPK, BFC-INCLR-HONC88, BFC-C88CL5PCPK

The product does not come with manual/instruction, Professional Install Recommended
