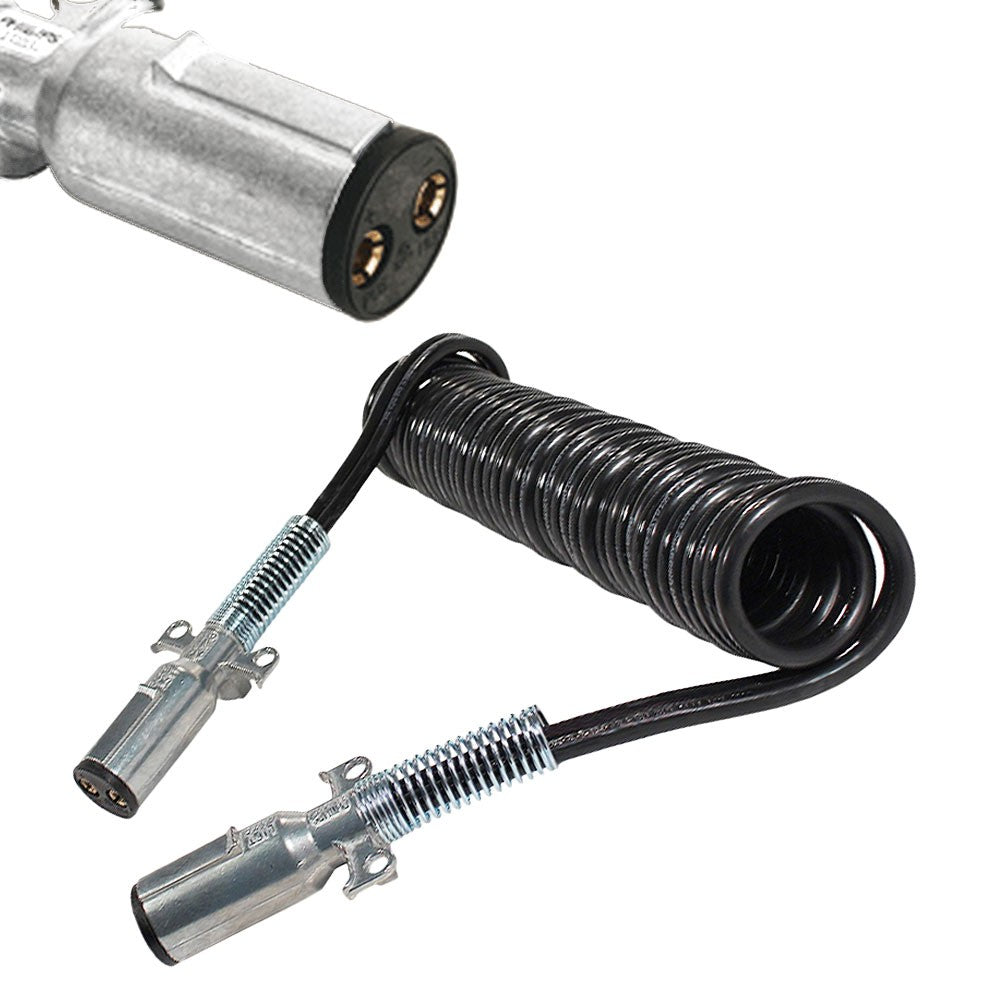

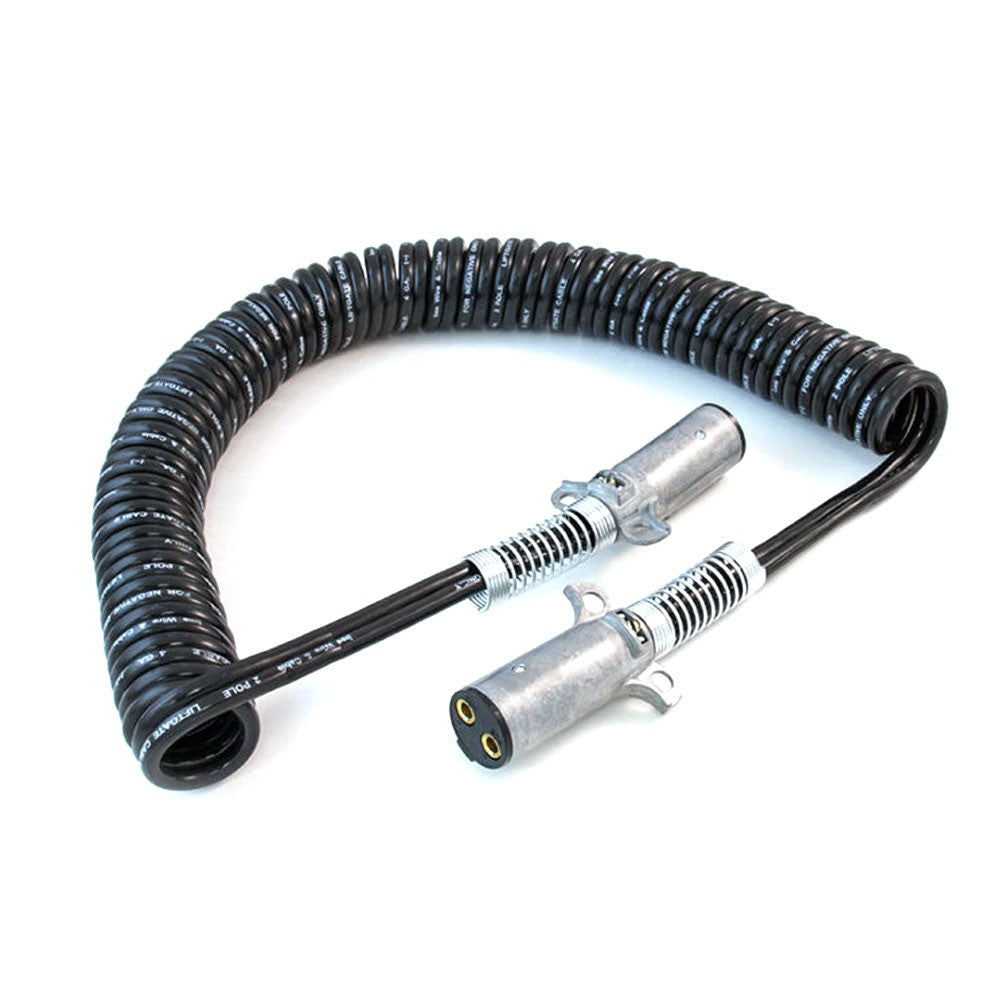

Phillips 23-2626 Dual Pole 15' 100AMP Coiled Liftgate Charging Cable Assembly

Phillips Industries has been a leading supplier and manufacturer of parts for the trucking industry since 1928. The company was built on a signal arm when a patent was awarded to Phillips founder Hugh Phillips, and the company began manufacturing the reflective signal arm two years later, and this single product became the foundation on which the company's success was built. Phillips Industries is an innovator as well as distributor of a wide variety of commercial trucking products for both OEMs and the aftermarket. They serve as a vendor to virtually every major tractor and trailer manufacturer in the U.S., and a leader in the parts aftermarket.

• Material: Reinforced Zinc Die-cast Housing; 2/4 ga. Fine Stranded Copper
• Color: Black
• Type: Coiled Liftgate Charging Cable
• Style: Dual Pole
• Length: 15 Feet
• Detail: 1 Ground, 1 Hot, 100 amp
• Excellent recoil memory, chemical and abrasion resistance
• Flexible from -82°F to 195°F (-63°C to 91°C)
• Internal ground to improve ground connections
• As a recommended practice, use a tracker bar spring kit or pogo stick to support cable assemblies with longer leads
• Mates with dual pole metal socket 15-326

Application:

For Heavy Duty Truck/Trailer

Remark:

Installation: Working length - As measured by pull force per SAE J2222. Length of actual cable is significantly longer

Product Content:

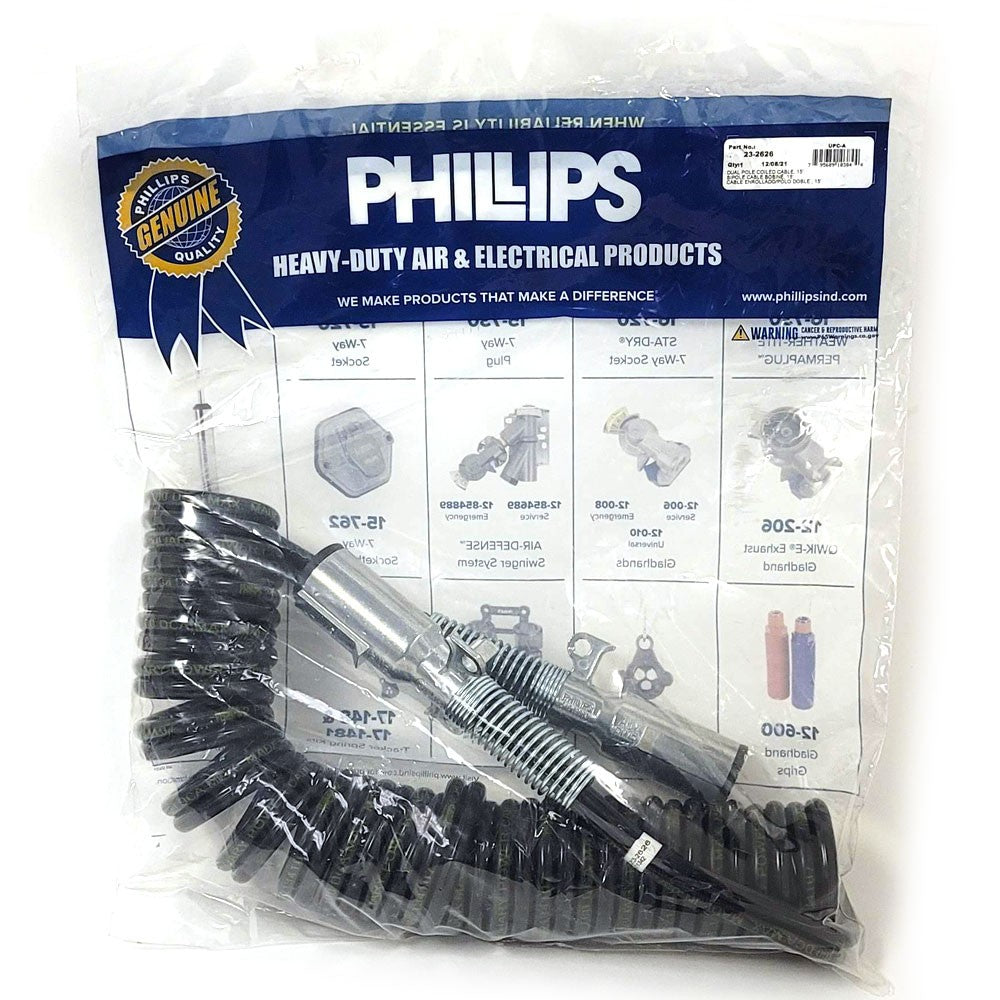

• 1 x Coiled Liftgate Charging Cable

The product does not come with manual/instruction, Professional Install Recommended

Cross Reference Number:

• TTP-PHI-23-2626, 23-2626, 23-2626-1, PHM232626
